Manufacturer: | onsemi | |
Product Category: | Transistor Output Optocouplers | |
RoHS: | Details | |
Mounting Style: | Through Hole | |

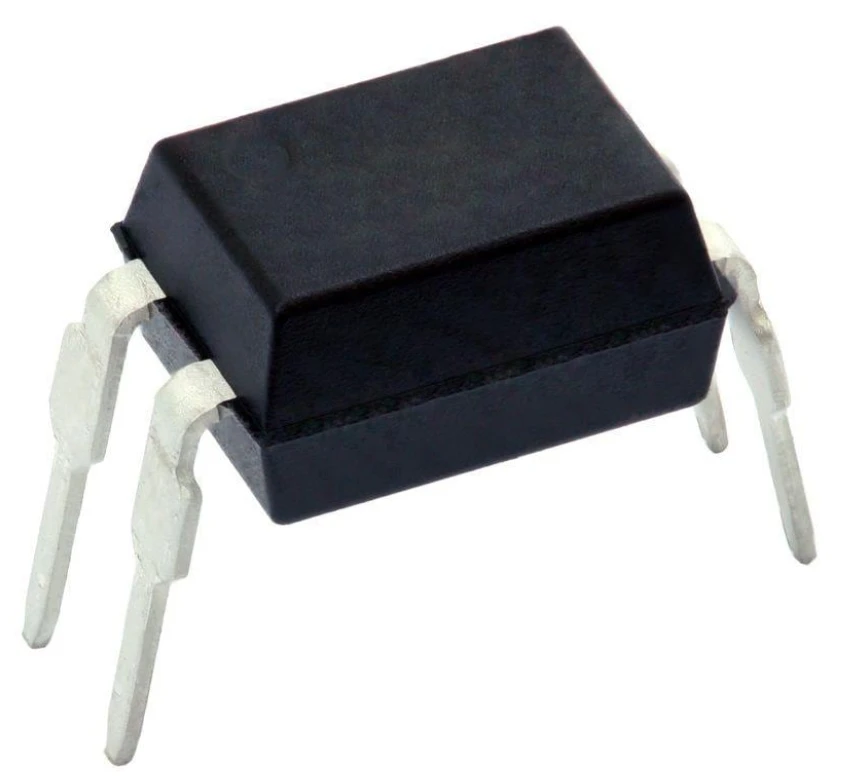

Package / Case: | PDIP-4 | |
Number of Channels: | 1 Channel | |
Isolation Voltage: | 5000 Vrms | |
Output Type: | NPN Phototransistor | |
Current Transfer Ratio - Min: | 300 % | |
Current Transfer Ratio - Max: | 600 % | |
If - Forward Current: | 50 mA | |
Vf - Forward Voltage: | 1.4 V | |
Maximum Collector Emitter Voltage: | 70 V | |
Maximum Collector Current: | 50 mA | |
Maximum Collector Emitter Saturation Voltage: | 200 mV | |
Rise Time: | 18 us | |
Fall Time: | 18 us | |
Vr - Reverse Voltage: | 6 V | |
Pd - Power Dissipation: | 200 mW | |
Minimum Operating Temperature: | - 55 C | |
Maximum Operating Temperature: | + 110 C | |
Series: | FOD817D | |
Packaging: | Tube | |
Brand: | onsemi / Fairchild | |
Collector-Emitter Breakdown Voltage: | 70 V | |
Configuration: | 1 Channel | |
Current Transfer Ratio: | 300 % | |
Height: | 4 mm | |
Length: | 5.1 mm | |
Product Type: | Transistor Output Optocouplers | |
Factory Pack Quantity: | 2000 | |
Subcategory: | Optocouplers | |
Width: | 7 mm | |
Unit Weight: | 0.009171 oz |
