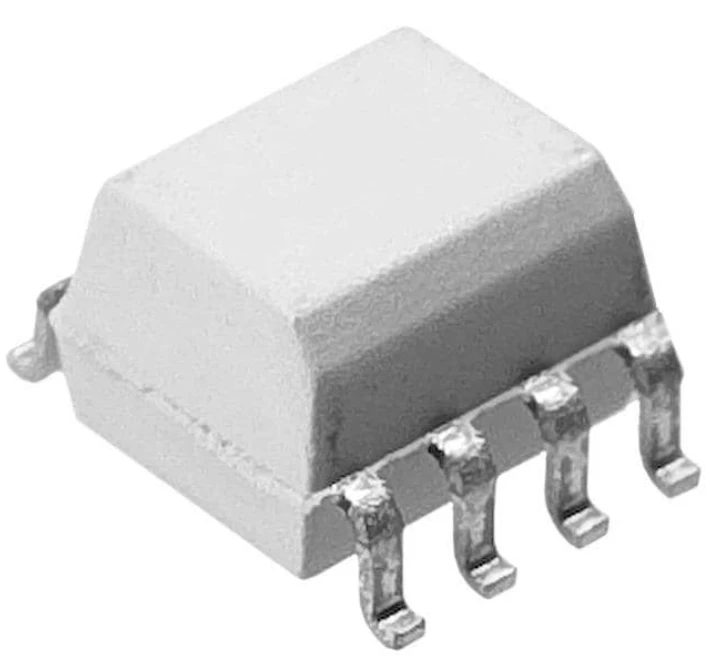

MOCD217R2M

MOCD217R2M

(0) 0 Reviews 0 Orders 0 Wish listed

$0.30 ~~$0.33~~

Quantity:

Total price :

(Tax : )

Manufacturer:	onsemi
Product Category:	Transistor Output Optocouplers
RoHS:	Details
Mounting Style:	SMD/SMT
Package / Case:	SOIC-Narrow-8
Number of Channels:	2 Channel
Isolation Voltage:	2500 Vrms
Output Type:	NPN Phototransistor
Current Transfer Ratio - Min:	100 %
Current Transfer Ratio - Max:	-
If - Forward Current:	60 mA
Vf - Forward Voltage:	1.3 V
Maximum Collector Emitter Voltage:	30 V
Maximum Collector Current:	150 mA
Maximum Collector Emitter Saturation Voltage:	400 mV
Rise Time:	3.2 us
Fall Time:	4.7 us
Vr - Reverse Voltage:	6 V
Pd - Power Dissipation:	240 mW
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 100 C
Series:	MOCD217M
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Brand:	onsemi / Fairchild
Configuration:	2 Channel
Current Transfer Ratio:	100 %
Height:	3.43 mm
Length:	5.13 mm
Product Type:	Transistor Output Optocouplers
Factory Pack Quantity:	2500
Subcategory:	Optocouplers
Width:	4.16 mm
Part # Aliases:	MOCD217R2M_NL
Unit Weight:	0.009524 oz
