BSP373N

BSP373N

(0) 0 Reviews 0 Orders 0 Wish listed

$0.35 ~~$0.39~~

Quantity:

Total price :

(Tax : )

Manufacturer:	Infineon
Product Category:	MOSFET
RoHS:	Details
Technology:	Si
Mounting Style:	SMD/SMT

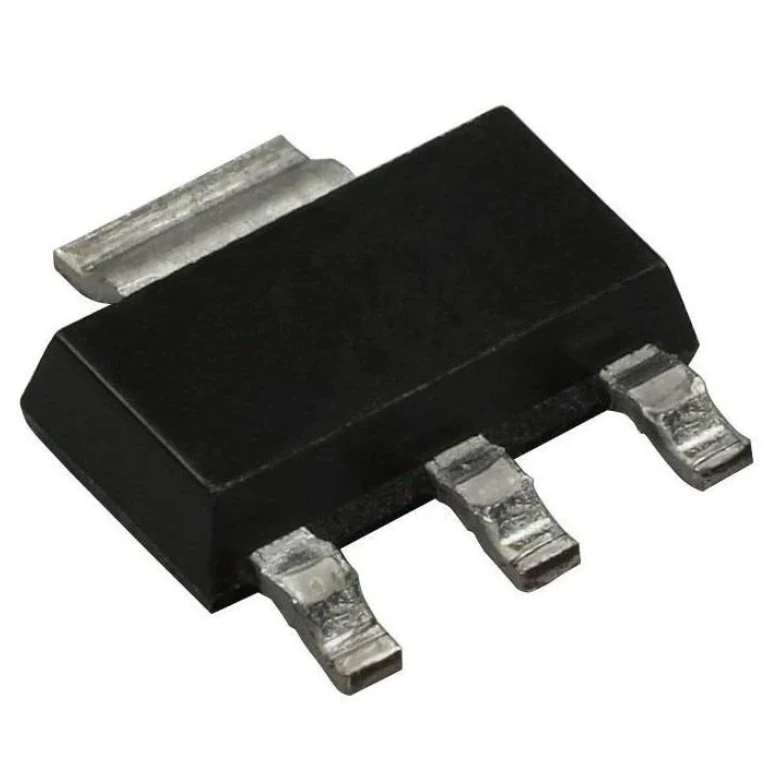

Package / Case:	SOT-223-4
Transistor Polarity:	N-Channel
Number of Channels:	1 Channel
Vds - Drain-Source Breakdown Voltage:	100 V
Id - Continuous Drain Current:	1.8 A
Rds On - Drain-Source Resistance:	177 mOhms
Vgs - Gate-Source Voltage:	- 20 V, + 20 V
Vgs th - Gate-Source Threshold Voltage:	2.1 V
Qg - Gate Charge:	6.2 nC
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 150 C
Pd - Power Dissipation:	1.8 W
Channel Mode:	Enhancement
Qualification:	AEC-Q101
Series:	BSP373
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Brand:	Infineon Technologies
Configuration:	Single
Fall Time:	13.5 ns
Forward Transconductance - Min:	3.23 S
Height:	1.6 mm
Length:	6.5 mm
Product Type:	MOSFET
Rise Time:	5.9 ns
Factory Pack Quantity:	1000
Subcategory:	MOSFETs
Transistor Type:	1 N-Channel
Typical Turn-Off Delay Time:	21.9 ns
Typical Turn-On Delay Time:	4.6 ns
Width:	3.5 mm
Part # Aliases:	BSP373N H6327 SP001059328
Unit Weight:	0.003951 oz
