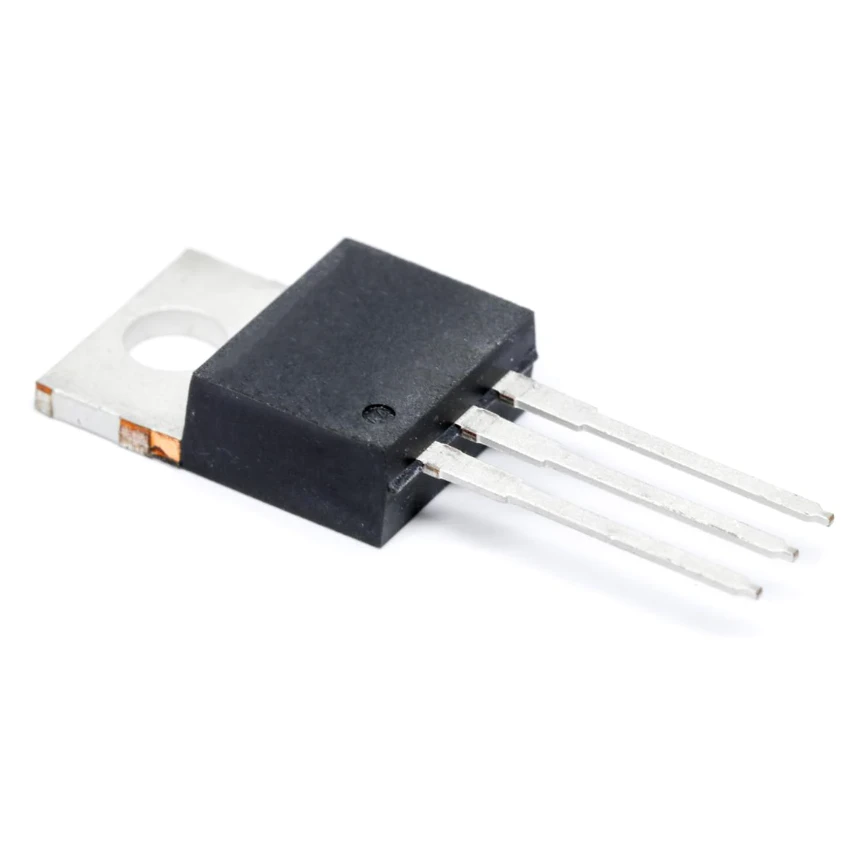

SPP11N80C3

SPP11N80C3

(0) 0 Reviews 0 Orders 0 Wish listed

$2.56 ~~$2.84~~

Quantity:

Total price :

(Tax : )

Manufacturer:	Infineon
Product Category:	MOSFET
RoHS:	Details
Technology:	Si
Mounting Style:	Through Hole
Package / Case:	TO-220-3
Transistor Polarity:	N-Channel
Number of Channels:	1 Channel
Vds - Drain-Source Breakdown Voltage:	800 V
Id - Continuous Drain Current:	11 A
Rds On - Drain-Source Resistance:	450 mOhms
Vgs - Gate-Source Voltage:	- 20 V, + 20 V
Vgs th - Gate-Source Threshold Voltage:	2.1 V
Qg - Gate Charge:	64 nC
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 150 C
Pd - Power Dissipation:	156 W
Channel Mode:	Enhancement
Tradename:	CoolMOS
Series:	CoolMOS C3
Packaging:	Tube
Brand:	Infineon Technologies
Configuration:	Single
Fall Time:	10 ns
Height:	15.65 mm
Length:	10 mm
Product Type:	MOSFET
Rise Time:	15 ns
Factory Pack Quantity:	500
Subcategory:	MOSFETs
Transistor Type:	1 N-Channel
Typical Turn-Off Delay Time:	72 ns
Typical Turn-On Delay Time:	25 ns
Width:	4.4 mm
Part # Aliases:	SPP11N8C3XK SP000683158 SPP11N80C3XKSA1
Unit Weight:	0.068784 oz
