Manufacturer: | Texas Instruments | |
Product Category: | Operational Amplifiers - Op Amps | |
RoHS: | Details | |
Number of Channels: | 2 Channel | |
GBP - Gain Bandwidth Product: | 1 MHz | |
SR - Slew Rate: | 500 mV/us | |
Vos - Input Offset Voltage: | 5 mV | |
Ib - Input Bias Current: | 10 pA | |
Supply Voltage - Max: | 5.5 V | |
Supply Voltage - Min: | 2.1 V | |
Operating Supply Current: | 45 uA | |
Output Current per Channel: | 10 mA | |
CMRR - Common Mode Rejection Ratio: | 82 dB | |
en - Input Voltage Noise Density: | 35 nV/sqrt Hz | |

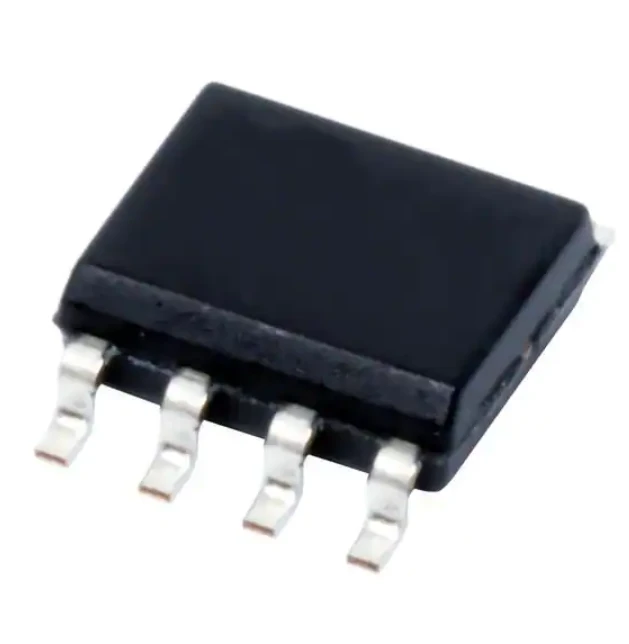

Package / Case: | SOIC-8 | |
Mounting Style: | SMD/SMT | |
Shutdown: | No Shutdown | |
Minimum Operating Temperature: | - 40 C | |
Maximum Operating Temperature: | + 125 C | |
Series: | OPA2348 | |
Packaging: | Reel | |
Packaging: | Cut Tape | |
Packaging: | MouseReel | |
Amplifier Type: | General Purpose Amplifier | |
Brand: | Texas Instruments | |
Height: | 1.58 mm | |
Input Type: | Rail-to-Rail | |
Length: | 4.9 mm | |
Moisture Sensitive: | Yes | |
Operating Supply Voltage: | 2.1 V to 5.5 V | |
Output Type: | Rail-to-Rail | |
Product: | Operational Amplifiers | |
Product Type: | Op Amps - Operational Amplifiers | |
PSRR - Power Supply Rejection Ratio: | 84.44 dB | |
Factory Pack Quantity: | 2500 | |
Subcategory: | Amplifier ICs | |
Supply Type: | Single | |
Voltage Gain dB: | 108 dB | |
Width: | 3.91 mm | |
Unit Weight: | 0.002677 oz |
