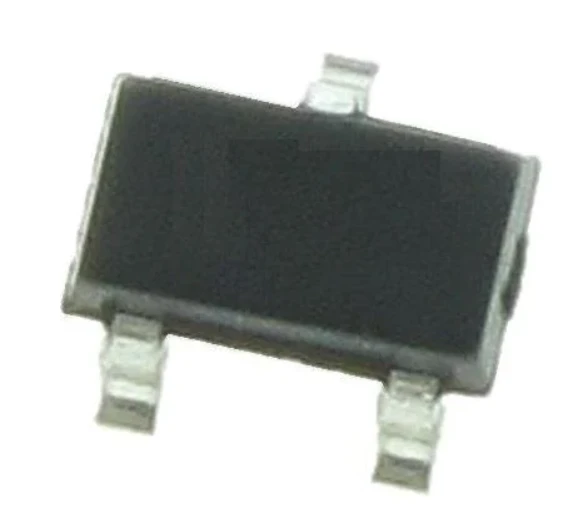

2N7002KT1G

2N7002KT1G

(0) 0 Reviews 0 Orders 0 Wish listed

$0.03 ~~$0.04~~

Quantity:

Total price :

(Tax : )

Manufacturer:	onsemi
Product Category:	MOSFET
RoHS:	Details
Technology:	Si
Mounting Style:	SMD/SMT
Package / Case:	SOT-23-3
Transistor Polarity:	N-Channel
Number of Channels:	1 Channel
Vds - Drain-Source Breakdown Voltage:	60 V
Id - Continuous Drain Current:	380 mA
Rds On - Drain-Source Resistance:	1.6 Ohms
Vgs - Gate-Source Voltage:	- 20 V, + 20 V
Vgs th - Gate-Source Threshold Voltage:	1 V
Qg - Gate Charge:	700 pC
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 150 C
Pd - Power Dissipation:	420 mW
Channel Mode:	Enhancement
Series:	2N7002K
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Brand:	onsemi
Configuration:	Single
Fall Time:	29 ns
Forward Transconductance - Min:	530 mS
Height:	0.94 mm
Length:	2.9 mm
Product:	MOSFET Small Signals
Product Type:	MOSFET
Rise Time:	9 ns
Factory Pack Quantity:	3000
Subcategory:	MOSFETs
Transistor Type:	1 N-Channel
Typical Turn-Off Delay Time:	55.8 ns
Typical Turn-On Delay Time:	12.2 ns
Width:	1.3 mm
Unit Weight:	0.000282 oz
