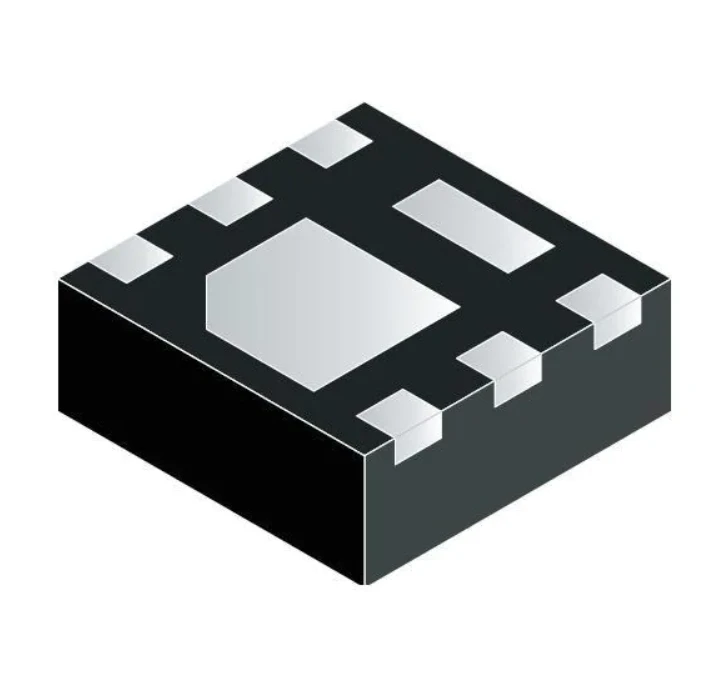

CSD13202Q2

CSD13202Q2

(0) 0 Reviews 0 Orders 0 Wish listed

$0.14 ~~$0.16~~

Quantity:

Total price :

(Tax : )

Manufacturer:	Texas Instruments
Product Category:	MOSFET
RoHS:	Details
Technology:	Si
Mounting Style:	SMD/SMT
Package / Case:	WSON-6
Transistor Polarity:	N-Channel
Number of Channels:	1 Channel
Vds - Drain-Source Breakdown Voltage:	12 V
Id - Continuous Drain Current:	14.4 A
Rds On - Drain-Source Resistance:	9.3 mOhms
Vgs - Gate-Source Voltage:	- 8 V, + 8 V
Vgs th - Gate-Source Threshold Voltage:	580 mV
Qg - Gate Charge:	5.1 nC
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 150 C
Pd - Power Dissipation:	2.7 W
Channel Mode:	Enhancement
Tradename:	NexFET
Series:	CSD13202Q2
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Brand:	Texas Instruments
Configuration:	Single
Fall Time:	13.6 ns
Forward Transconductance - Min:	44 S
Height:	0.75 mm
Length:	2 mm
Product Type:	MOSFET
Rise Time:	28 ns
Factory Pack Quantity:	3000
Subcategory:	MOSFETs
Transistor Type:	1 N-Channel
Typical Turn-Off Delay Time:	11 ns
Typical Turn-On Delay Time:	4.5 ns
Width:	2 mm
Unit Weight:	0.000208 oz
