PN2222ATFR

PN2222ATFR

(0) 0 Reviews 0 Orders 0 Wish listed

$0.06

Quantity:

Total price :

(Tax : )

Manufacturer:	onsemi
Product Category:	Bipolar Transistors - BJT
RoHS:	Details
Mounting Style:	Through Hole

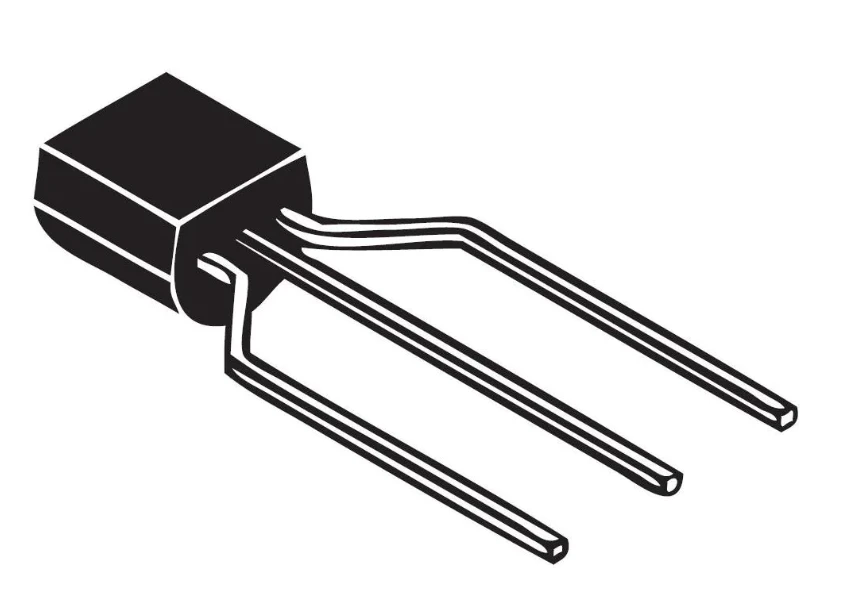

Package / Case:	TO-92-3 Kinked Lead
Transistor Polarity:	NPN
Configuration:	Single
Collector- Emitter Voltage VCEO Max:	40 V
Collector- Base Voltage VCBO:	75 V
Emitter- Base Voltage VEBO:	6 V
Collector-Emitter Saturation Voltage:	1 V
Maximum DC Collector Current:	1 A
Pd - Power Dissipation:	625 mW
Gain Bandwidth Product fT:	300 MHz
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 150 C
Series:	PN2222A
Packaging:	Reel
Packaging:	Cut Tape
Brand:	onsemi / Fairchild
Continuous Collector Current:	1 A
DC Current Gain hFE Max:	300
Height:	4.7 mm
Length:	4.7 mm
Product Type:	BJTs - Bipolar Transistors
Factory Pack Quantity:	2000
Subcategory:	Transistors
Technology:	Si
Width:	3.93 mm
Part # Aliases:	PN2222ATFR_NL
Unit Weight:	0.008466 oz
